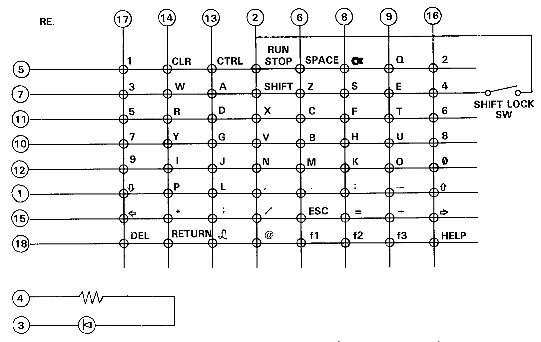

KEYBOARD MATRIX
PIN ASSIGNMENT
U2-251536-01
CUSTOM MICROPROCESSOR

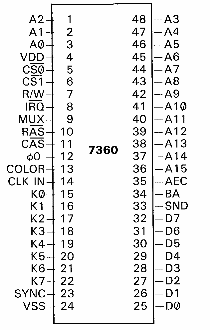

PIN ASSIGNMENT
U1-251535-01
VLSI, TEXT DISPLAY
TED

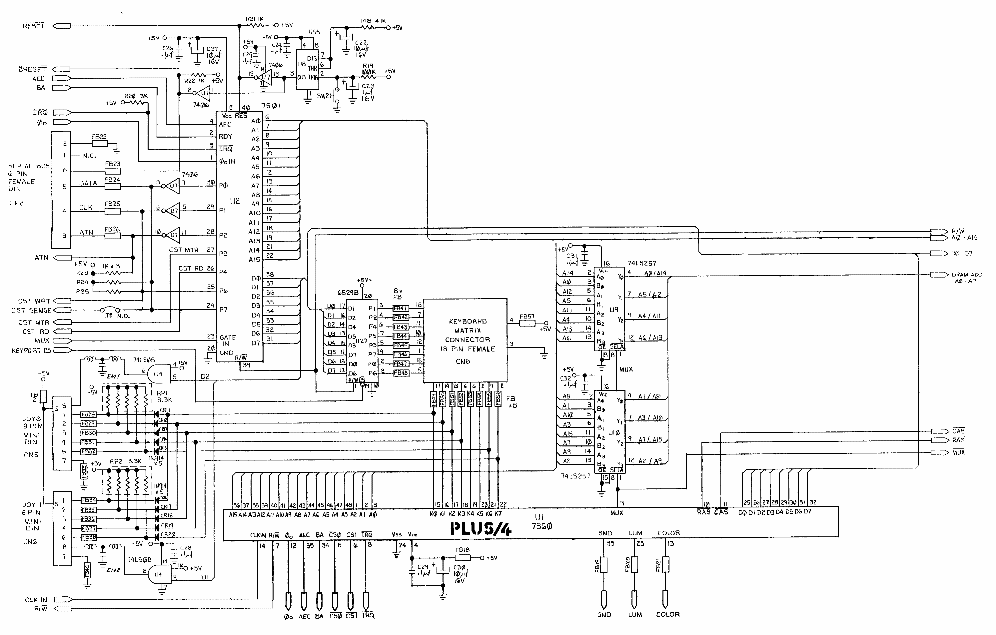

Plus 4 Schematic #310164 (1 of 4)
