PARTS LIST - PCB ASSEMBLY #017-5001-01

NOTE:	DATASETTE PARTS ARE NOT AVAILABLE FROM COMMODORE - parts list is for cross reference only.

INTERGRATED CIRCUITS IC1 IC LA6324 IC2 IC DM7414 TRANSISTORS Q1 2SC1815Y or GR DIODES D1 LED RED 3ø RESISTORS - All values are in ohms-1/4 W 5% unless noted otherwise. R1 470 ohm R2 470 ohm R3 2.2M ohm

CAPACITORS C1 Aluminum 0.47µ/25V C2 Electrolytic 47µ/10V C3 Mylar .1µ C4 Ceramic 150p C5 Mylar .1µ C6 Ceramic 180p C7 Ceramic 0.0022µ C8 Electrolytic 47µ/10V MISC. F1-F6 Ferrite Bead Q1BRHW3.5x4.5x0.8 SWI Slide Switch CN1 7 Pin Connector

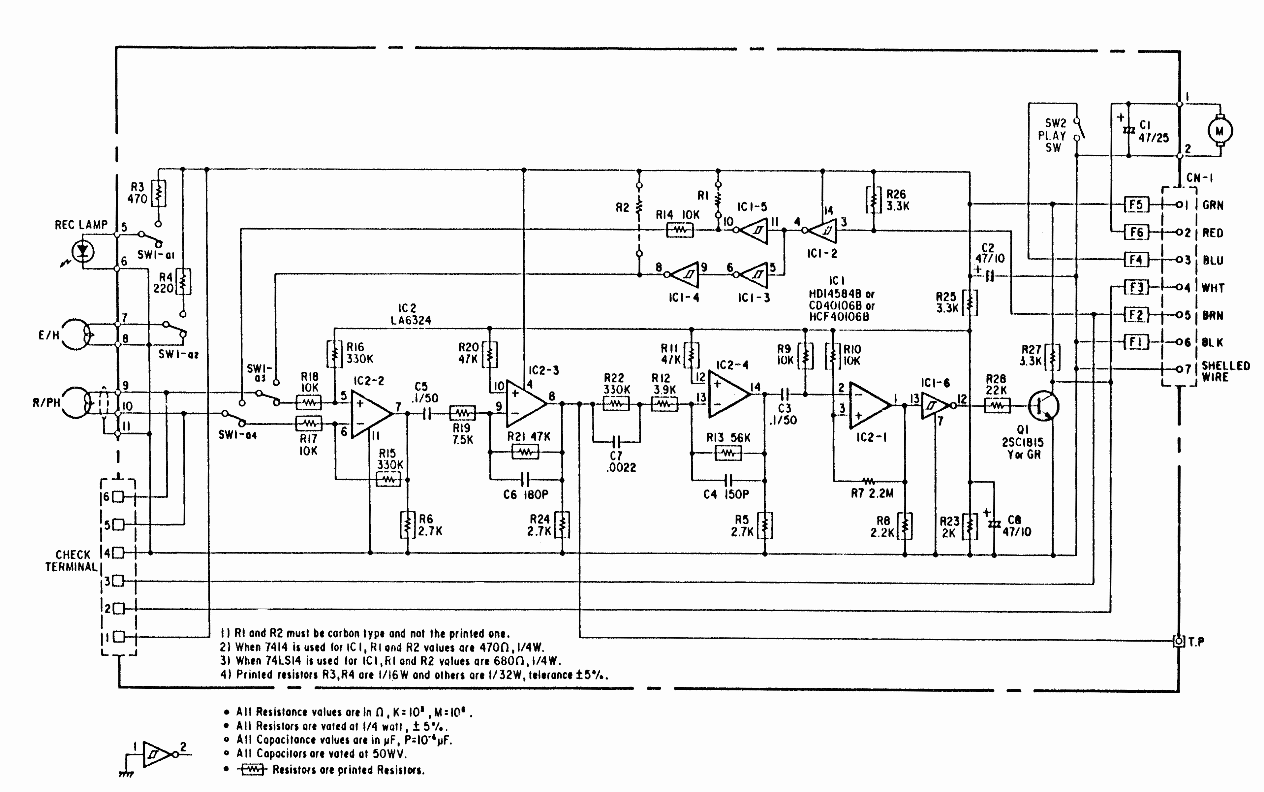

Schematic Circuit Diagram - PCB Assembly #017-5001-01
