PARTS LIST - PCB ASSEMBLY #320109

NOTE:	DATASETTE PARTS ARE NOT AVAILABLE FROM COMMODORE - parts list is for cross reference only.

INTERGRATED CIRCUITS IC1 LM 358 (T.I.) Sub: NA 798 (Fairchild) Sub: LM 258 (T.I.) TRANSISTORS Q1 NPN 2SC945 Sub:2N3904 Q2 NPN 2SC945 Sub:2N3904 Q3 NPN 2N4401 Q5 NPN 2SC945 Sub: 2N3904 DIODES CR1 -CR4 IN4148 RESISTORS - All values are in ohms-1/4 W 5% unless noted otherwise. R1 220K R2 15K R3 270 R6 5.6 K 1/4w 2% (sub 1 %) R7 10K 1/4w 2% (sub 1 %) R8 47 1/4w 2% (sub 1 %) R9 10K R10 10K R11 10K R13 2M R15 470 R20 10K

RESISTORS (Continued) R21 3.3K R22 100 R23 1K R26 750K R27 750 R28 2200 R29 47K R31 22K R32 47 R35 75K R36 15K CAPACITORS C1 Electrolytic 47 µF 10V C3 Film .1 µF 16V C4 Ceramic .001 µF 50V C5 Ceramic .1 µF 16V C11 Ceramic .001 µF 50V C15 Electrolytic 22 µF 10V C16 Ceramic .1 µF 16V C17 Ceramic .1 µF 16V MISC. SWI Slide Switch SEA-621

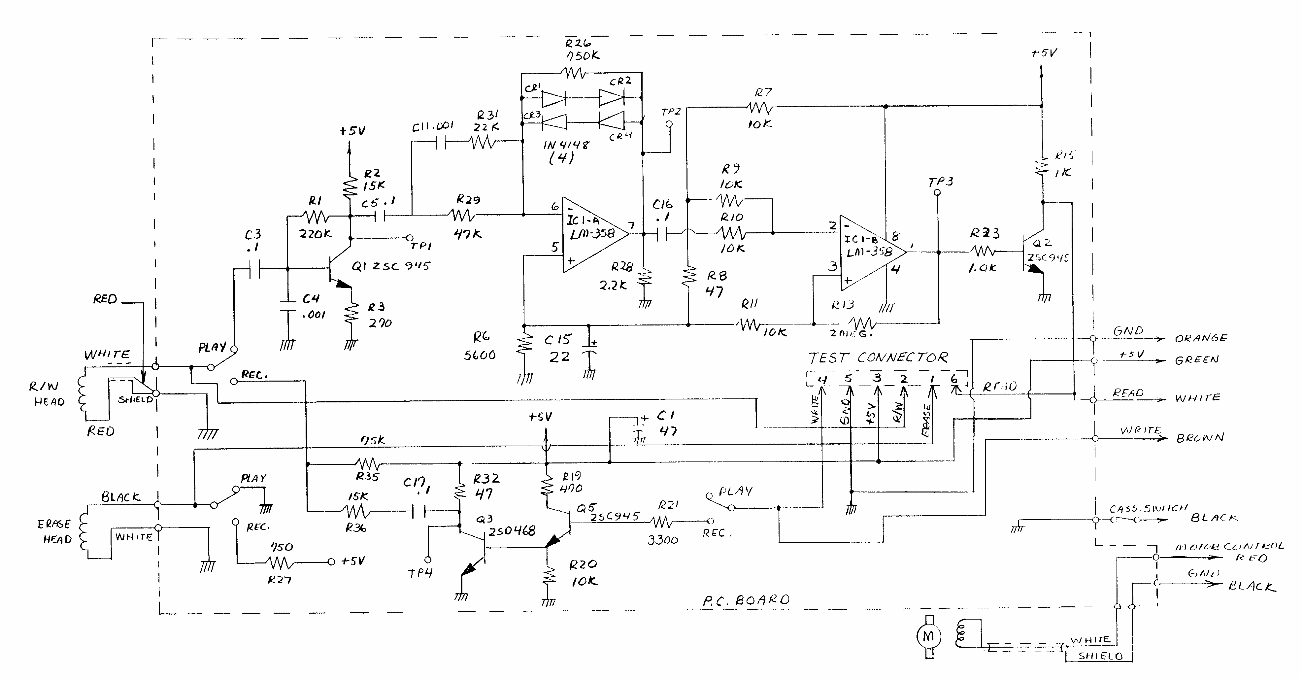

Schematic Circuit Diagram - PCB Assembly #320190
