PARTS LIST

INTEGRATED CIRCUITS 1A LM 2917N TRANSISTORS Q1 GE 7941 sub: GE 7947 Q2 M10060-0 DIODES CR1-7 1N4148 RESISTORS - Ceramic 1/8W All Values are in ohms at 5% unless noted otherwise. R1 100 1%, 1/8W R2 909 1%, 1/8W R3 10K R4 4.7K R5 40.2K 1%, 1/8W R6 160K R7 12 R8 27K R9 470 R10 23.2K 1%, 1/8W R11 7.5K, 1%, 1/8W R12 68 R13 68 R14 2K R15 150 R16 .68, 5%, 1W R17 5K Trim Pot Rectangle, 3/4 in. R18 20K

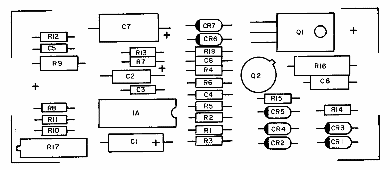

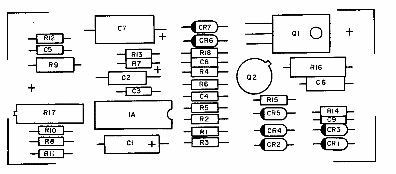

COMPONENT LOCATIONS MOTOR CONTROL PCB ASSEMBLY P/N 25181	COMPONENT LOCATIONS MOTOR CONTROL PCB ASSEMBLY P/N 25129

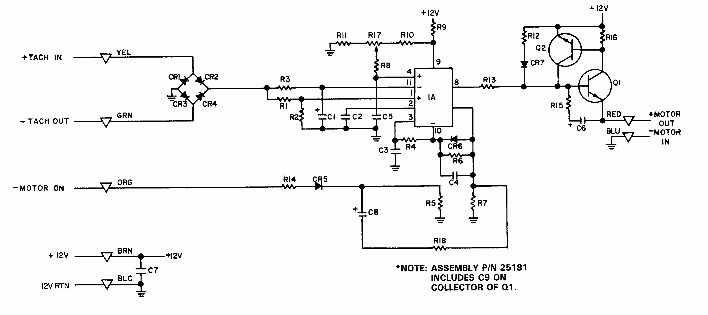

SCHEMATIC
